Almahata Sitta MS-MU-002

EL3
(ELb3/4 in Weyrauch et al., 2018)

Fell October 7, 2008
20° 43.04′ N., 32° 30.58′ E. In 2008, October 6 at 5:46 A.M., asteroid 2008 TC3 fell to Earth in northern Sudan. See the Almahata Sitta webpage for the complete story of the discovery of this meteoriteWork in progress. A solid natural object reaching a planet’s surface from interplanetary space. Solid portion of a meteoroid that survives its fall to Earth, or some other body. Meteorites are classified as stony meteorites, iron meteorites, and stony-iron meteorites. These groups are further divided according to their mineralogy and Click on Term to Read More, results of the consortium analyses, and new models for the petrogenetic history of the ureilite parent bodyThe body from which a meteorite or meteoroid was derived prior to its ejection. Some parent bodies were destroyed early in the formation of our Solar System, while others like the asteroid 4-Vesta and Mars are still observable today. Click on Term to Read More.

The 2008 TC3 meteorite was sent to NASA’s Johnson Space Center in Houston (Zolensky) and Carnegie Institution of Washington (Steele) for analysis and classification, and Alamahta Sitta was determined to be a polymict ureilite fragmental brecciaWork in Progress ... A rock that is a mechanical mixture of different minerals and/or rock fragments (clasts). A breccia may also be distinguished by the origin of its clasts: (monomict breccia: monogenetic or monolithologic, and polymict breccia: polygenetic or polylithologic). The proportions of these fragments within the unbrecciated material Click on Term to Read More composed of three main ureilite lithologies, along with a wide range of xenolithic clasts representing many different chondritic and achondritic lithologies in an assemblage similar to the polymict brecciaGeneral term for all breccias that are neither monomict nor dimict. Modified from image source: http://www.saharamet.com/meteorite/gallery/HED/index.html. Kaidun (Bischoff et al., 2010). Results of the analyses indicate that all of the clasts came from the Almahata Sitta fallMeteorite seen to fall. Such meteorites are usually collected soon after falling and are not affected by terrestrial weathering (Weathering = 0). Beginning in 2014 (date needs confirmation), the NomComm adopted the use of the terms "probable fall" and "confirmed fall" to provide better insight into the meteorite's history. If Click on Term to Read More; e.g., detection of short-lived cosmogenic nuclides, very low weathering grade (W0–W0/1), multiple lithologies among fragments delimiting a strewn fieldArea on the surface containing meteorites and fragments from a single fall. Also applied to the area covered by tektites, which are produced by large meteorite impacts. Strewnfields are often oval-shaped with the largest specimens found at one end. Given that the largest specimens go the greatest distance, a meteoroid's, a high number of rare E-chondriteType of meteorite high in the mineral enstatite and also referred to as E-chondrites. Although they contain substantial amounts of Fe, it is in the form of Ni-Fe metal or sulfide rather than as oxides in silicates. Their highly reduced nature indicates that they formed in an area of the Click on Term to Read More rock types found together, diffusionMovement of particles from higher chemical potential to lower chemical potential (chemical potential can in most cases of diffusion be represented by a change in concentration). Diffusion, the spontaneous spreading of matter (particles), heat, or momentum, is one type of transport phenomena. Because diffusion is thermally activated, coefficients for diffusion Click on Term to Read More of PAHs among clasts [Sabbah et al., 2010], and the finding of new and unique meteorite fragments within a small area.

The heterogeneous composition of Almahata Sitta could reflect an assemblage derived from a catastrophic collision(s) between ureilte and chondriteChondrites are the most common meteorites accounting for ~84% of falls. Chondrites are comprised mostly of Fe- and Mg-bearing silicate minerals (found in both chondrules and fine grained matrix), reduced Fe/Ni metal (found in various states like large blebs, small grains and/or even chondrule rims), and various refractory inclusions (such Click on Term to Read More objects (Kohout et al., 2010). Alternatively, it is considered likely that these diverse clasts could have become gravitationally bound within a common debris disk composed of a disrupted ureilite asteroid, and that this disk then re-accreted into one or more smaller second-generation asteroids. This second-generation asteroid later became lightly sintered together through subsequent low-energy impacts, resulting in a bulk porosityThe volume percentage of a rock that consists of void space. Vesicular porosity is a type of porosity resulting from the presence of vesicles, or gas bubbles, in igneous rock such as the pumice presented here. Vesicular porosity is very rare in meteorites and is often associated with slag, one Click on Term to Read More of ~50%. The highly porous ureilite material recovered from the Almahata Sitta fall, as represented by the recovered specimen MS-168, is consistent with the hypothesized lightly-sintered matrixFine grained primary and silicate-rich material in chondrites that surrounds chondrules, refractory inclusions (like CAIs), breccia clasts and other constituents. Click on Term to Read More of the second-generation asteroid 2008 TC3.

InclusionFragment of foreign (xeno-) material enclosed within the primary matrix of a rock or meteorite. Click on Term to Read More MS-MU-002 was analyzed and classified at the University in Münster, Germany (A. Bischoff), and it was determined to be a very rare and uniquely pristine EL3 chondrite associated with the Almahata Sitta fall. The entire MS-MU-002 inclusion had dimensions of 1.28 × 1.15 × 1.07 cm, and weighed only 3.0 g before it was sectioned into several slices. Other EL3 clasts recovered from the Almahata Sitta strewn field include MS-17 and MS-177, initially characterized by Goresy et al. (2012).

Although classification of MS-MU-002 by magnetic susceptibility alone (5.26; Hoffmann et al., 2016) cannot discriminate between EH and EL chondrite groups, the observed values for a variety of parameters can help resolve the genetic relationship. For example, FeNi-metal in MS-MU-002 contains kamaciteMore common than taenite, both taenite and kamacite are Ni-Fe alloys found in iron meteorites. Kamacite, α-(Fe,Ni), contains 4-7.5 wt% Ni, and forms large body-centered cubic crystals that appear like broad bands or beam-like structures on the etched surface of a meteorite; its name is derived from the Greek word Click on Term to Read More with ~1.4 wt% Si (EL: 0.3–2.1 wt%; EH: 1.9–3.8 wt%). Also, the sulfides that are present include troiliteBrass colored non-magnetic mineral of iron sulfide, FeS, found in a variety of meteorites. Click on Term to Read More, oldhamiteMn-Ca sulfide, (Mn,Ca)S, is a pale to dark brown accessory mineral found in minor amounts in highly reduced meteorites such as many enstatite chondrites, and some aubrites and enstatite achondrites. Oldhamite in enstatite chondrites likely formed by solar nebular gas condensation. CaS Oldhamite was also found in the most fresh Click on Term to Read More, and keilitic alabanditeMagnesium sulfide found in aubrites and EL chondrites. Its formula is MnS. Click on Term to Read More. Keilitic alabandite is representative of the Fe,Mn-rich end member of the solid solutionCompositional variation resulting from the substitution of one ion or ionic compound for another ion or ionic compound in an isostructural material. This results in a mineral structure with specific atomic sites occupied by two or more ions or ionic groups in variable proportions. Solid solutions can be complete (with series ([Mg,Mn,Fe]S) which occurs only in EL chondritesChondrites are the most common meteorites accounting for ~84% of falls. Chondrites are comprised mostly of Fe- and Mg-bearing silicate minerals (found in both chondrules and fine grained matrix), reduced Fe/Ni metal (found in various states like large blebs, small grains and/or even chondrule rims), and various refractory inclusions (such Click on Term to Read More, in contrast to the Mg-rich end member (niningerite) found in EH chondrites. Inclusion MS-MU-002 contains chondrulesRoughly spherical aggregate of coarse crystals formed from the rapid cooling and solidification of a melt at  ~1400 ° C. Large numbers of chondrules are found in all chondrites except for the CI group of carbonaceous chondrites. Chondrules are typically 0.5-2 mm in diameter and are usually composed of olivine Click on Term to Read More with diameters of 0.2–0.5 mm (no average available), a size which overlaps the averages for both E-chondrite groups (EL3: ave. 0.55 mm; EH3: ave. 0.22 mm). A more complete list of EL/EH discriminators can be found on the NWA 3132 page.

Weyrauch et al. (2018) analyzed the mineralInorganic substance that is (1) naturally occurring (but does not have a biologic or man-made origin) and formed by physical (not biological) forces with a (2) defined chemical composition of limited variation, has a (3) distinctive set of of physical properties including being a solid, and has a (4) homogeneous Click on Term to Read More and chemical data from 80 enstatiteA mineral that is composed of Mg-rich pyroxene, MgSiO3. It is the magnesium endmember of the pyroxene silicate mineral series - enstatite (MgSiO3) to ferrosilite (FeSiO3). Click on Term to Read More chondrites representing both EH and EL groups and spanning the full range of petrologic types for each group. They found that a bimodality exists in each of these groups with respect to both the Cr content in troilite and the Fe concentration in niningerite and alabandite. In addition, both the presence or absence of daubréelite and the content of Ni in kamacite were demonstrated to be consistent factors for the resolution of four distinct E chondrite groups: EHa, EHb, ELa, and ELb (see table below).

A few other E chondrites with intermediate mineralogy have also been identified, including LAP 031220 (EH4), QUE 94204 (EH7), Y-793225 (E-an), LEW 87223 (E-an), and PCA 91020 (possibly related to LEW 87223). Studies have determined that these meteorites were not derived from the EH or EL source through any metamorphicRocks that have recrystallized in a solid state due to changes in temperature, pressure, and chemical environment. Click on Term to Read More processes, and some or all of them could represent separate E chondrite asteroids. The revised E chondrite classification scheme of Weyrauch et al. (2018) including selected examples from their 80-sample study can be found here. It was determined that MS-MU-002 is a member of the ELb subgroup.

Petrographic and isotopic evidence indicate that the EL parent body accreted hot silicateThe most abundant group of minerals in Earth's crust, the structure of silicates are dominated by the silica tetrahedron, SiO44-, with metal ions occurring between tetrahedra). The mesodesmic bonds of the silicon tetrahedron allow extensive polymerization and silicates are classified according to the amount of linking that occurs between the and metalElement that readily forms cations and has metallic bonds; sometimes said to be similar to a cation in a cloud of electrons. The metals are one of the three groups of elements as distinguished by their ionization and bonding properties, along with the metalloids and nonmetals. A diagonal line drawn Click on Term to Read More components that were formed through repeated nebular condensation processes rather than by impact-heating events on a parent body (Weisberg et al., 2013). Observations consistent with a nebular condensation origin include the absence of shock-induced features, the lack of high-pressure polymorphs, the presence of metal–sinoite–oldhamite–graphiteOpaque form of carbon (C) found in some iron and ordinary chondrites and in ureilite meteorites. Each C atom is bonded to three others in a plane composed of fused hexagonal rings, just like those in aromatic hydrocarbons. The two known forms of graphite, α (hexagonal) and β (rhombohedral), have Click on Term to Read More assemblages composed of crystalline sinoite and poorly graphitized carbonElement commonly found in meteorites, it occurs in several structural forms (polymorphs). All polymorphs are shown to the left with * indicating that it been found in meteorites and impact structures: a. diamond*; b. graphite*; c. lonsdalite*; d. buckminsterfullerene* (C60); e. C540; f. C70; g. amorphous carbon; h. carbon nanotube*. Click on Term to Read More, and the pristine texture of discrete chondrules and metal nodules, while the isotopic inventory is inconsistent with a large-scale impact-heating event. A high abundance of metal in the final agglomerationProcess of collecting in a jumbled cluster. In relation to meteorites, agglomeration refers to the early accretion of chondrules, refractory inclusions and silicate matrix material to form chondritic clusters. Click on Term to Read More is also expected with the presumed nebular condensation sequence.

Exclusive of the primary ureilite components, there was a broad diversity of lithologic types present in 2008 TC3, constituting <30% of all material recovered. However, with the vast bulk of 2008 TC3 thought to have been lost as fine dust (≥99.9% of the estimated 42–83 ton pre-atmospheric mass), the bulk asteroid was likely composed of fine-grained, highly porous, and weakly consolidated ureilitic matrix material, consistent with the reflectance spectra obtained for the asteroid (Goodrich et al., 2015). Examples of some of the diverse samples that have been recovered are listed below (Bischoff et al., 2010, 2015, 2016, 2018; Horstmann and Bischoff, 2010, 2014; Hoffmann et al., 2016):

• ultrafine- to fine-grained ureilites (representing numerous lithologies with varying olivine compositions): MS-185 (ultrafine-grained), MS-MU-001, -018 (high shock, metal–sulfide-rich), -025 (high shock), -027 (high shock), -030 (high shock, metal–sulfide-rich), -032 (high shock, metal–sulfide-rich), -033 (high shock, metal–sulfide-rich), -040 (high shock), -045 (high shock)
• coarse-grained ureilites (representing numerous lithologies with varying olivine compositions: MS-MU-005, -006, -008, -010, -014 (very coarse), -016, -017, -020, -022, -034, -037, -038
• variable grain-sized ureilite breccias: MS-25, -205, -190; MS-MU-004, -021, -028, -042
• highly porous ureilitic (matrix) material: MS-168
• enstatite chondrites (36 representing numerous different enstatite chondrites): EH3 (MS-14), EH4/5 (MS-192, MS-MU-009), EH5 (MS-MU-041, -044), EL3 (MS-1, -17, -177, MS-MU-002, -023, -031), EL3/4 + melt (MS-17, MS-MU-039 [+ melt]), EL3–5 (MS-179), EL4 (MS-MU-029), EL4/5 (MS-192, MS-MU-009), EL5 (MS-196), EL5/6 (MS-7), EL6 (MS-150, MS-MU-007, -015, -024, -026), EL breccias (MS-MU-003), and both EL and EH (MS-155) shock-darkened, impact-melt rocks or impact-melt breccias
• ordinary chondrites: H4 (MS-MU-043), H5 (AhS 25, MS-151 [shock-darkened]), H5/6 (MS-11, with compositional discordance), L4 (AhS A100), LL4/5 (MS-197), H5-an (MS-MU-013)
• unique chondrite: MS-CH, type 3.8 [± 0.1], has petrographic and isotopic affinities to R-chondrites, but is mineralogically anomalous
• Bencubbin-like carbonaceous chondriteCarbonaceous chondrites represent the most primitive rock samples of our solar system. This rare (less than 5% of all meteorite falls) class of meteorites are a time capsule from the earliest days in the formation of our solar system. They are divided into the following compositional groups that, other than Click on Term to Read More: MS-181, a 58.6 g chondrule-like clastA mineral or rock fragment embedded in another rock. Click on Term to Read More containing metal globules and silicates in a 60:40 ratio, having an O-isotopic composition consistent with bencubbinites
• C2 carbonaceous chondrite: AhS 202 (photo; Fioretti et al., 2017, #1846)
• C1 carbonaceous chondrite: AhS 91/91A and 671 (photo; Goodrich et al., 2018, #1321)
• niningerite-bearing, fine-grained ureilitic fragment (linking E chondrites): MS-20
• sulfide-metal assemblage in a fine-grained ureilitic fragment: MS-158, -166
• ungroupedModifying term used to describe meteorites that are mineralogically and/or chemically unique and defy classification into the group or sub-group they most closely resemble. Some examples include Ungrouped Achondrite (achondrite-ung), Ungrouped Chondrite (chondrite-ung), Ungrouped Iron (iron-ung), and Ungrouped Carbonaceous (C-ung). Click on Term to Read More enstatite- and metal-rich achondriteAn achondrite is a type of stony meteorite whose precursor was of chondritic origin and experienced metamorphic and igneous processes. They have a planetary or differentiated asteroidal origin where the chondritic parent body reached a sufficient size that through heating due to radioactive decay of 26Al (aluminum isotope) and gravitational Click on Term to Read More fragments: MS-MU-019 (characteristics similar to NWA 8173/10271); MS-MU-036 (similar to MS-MU-019 and Itqiy [Bischoff et al., 2016]); AhS 38 (similar to MS-MU-019 and Itqiy but contains olivine [Goodrich et al., 2018]); AhS 60 (possible E IMR analogous to Portales Valley [Goodrich et al., 2018])
• the first known plagioclase-bearing olivine–augiteHigh-Ca clinopyroxene, (Ca,Mg,Fe)SiO3, that occurs in many igneous rocks, particularly those of basaltic composition. In order to be considered augite, the clinopyroxene must contain 20 to 45 mol % of calcium (Wo20 - 45). An important and unique Martian meteorite is NWA 8159, that has been classified as an augite basalt. Click on Term to Read More ureilite lithology: MS-MU-012
• trachyandesitic clasts: 1) MS-MU-011 (view 1), MS-MU-011 (view 2), sample ALM-A; plagioclase-enriched (~70 vol%) with pockets of gemmy olivine (photo courtesy of Stephan Decker), likely sampling the UPB crustOutermost layer of a differentiated planet, asteroid or moon, usually consisting of silicate rock and extending no more than 10s of km from the surface. The term is also applied to icy bodies, in which case it is composed of ices, frozen gases, and accumulated meteoritic material. On Earth, the Click on Term to Read More (or possibly an alkali- and water-rich localized melt pocket); calculated Ar–Ar age of ~4.556 b.y. and Pb–Pb age of ~4.562 b.y. (Bischoff et al., 2013, 2014; Delaney et al., 2015; Turrin et al., 2015; Amelin et al., 2015); 2) MS-MU-035; anorthoclase and/or plagioclase-enriched (~65 vol%) (Bischoff et al., 2016)

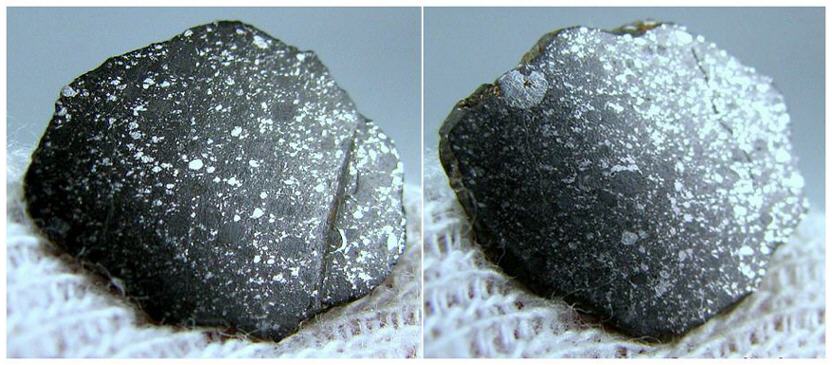

Special thanks to Siegfried Haberer and Stephan Decker for providing specimens of this special meteorite and many of its xenolithic inclusions to the scientific and collector communities. The photo of MS-MU-002 shown above is a 0.350 g full slice. The photo below shows the 3.00 g main massLargest fragment of a meteorite, typically at the time of recovery. Meteorites are commonly cut, sliced or sometimes broken thus reducing the size of the main mass and the resulting largest specimen is called the "largest known mass". Click on Term to Read More.
Photo courtesy of Stephan Decker—Meteorite Shop and Museum
